Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HOLDER

FOOTREST FOR SUZUKI DR 125 2010

GRIP

Item numbers

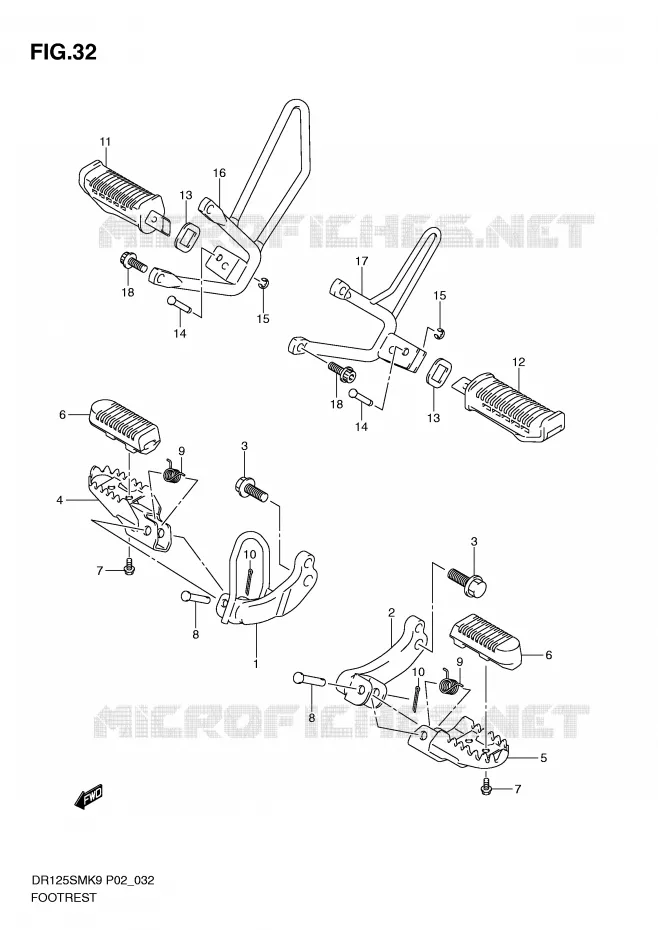

FOOTREST Suzuki MOTO 125 DR 2010 DR125SML0
1
2
3
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
13
14
14
15
15
16
17
18
18
1
BAR, FRONT FOOTREAST RH (BLACK

43510-24H00-EE3   4351024H00EE3

4351024H00EE3
Not available
2
BAR, FRONT FOOTREAST LH (BLACK

43520-24H00-EE3   4352024H00EE3

4352024H00EE3
Not available
3
BOLT(12X25)
BOLT

09103-12047-000   0910312047000

0910312047000

Unit Price

4
FOOTREST, RH (BLACK)

43550-24H00-EE3   4355024H00EE3

4355024H00EE3
Not available
5
FOOTREST, LH (BLACK)

43560-24H00-EE3   4356024H00EE3

4356024H00EE3
Not available
6
RUBBER, FOOTREST
RUBBER

43530-29F00-000   4353029F00000

4353029F00000

Unit Price

7
BOLT

01547-0510A-000   015470510A000

015470510A000

Unit Price

8
FITTING PIN<br />PIN
FITTING PIN
PIN

09200-08002-000   0920008002000

0920008002000

Unit Price

9
SPRING

09448-14037-000   0944814037000

0944814037000

Unit Price

10
COTTER PIN

D4111-2015A-000   D41112015A000

D41112015A000
Not available
11
FOOTREST ASSY, PILLION RH

43600-12B00-000  

43600-12B01-000
 4360012B00000

Unit Price

12
FOOTREST ASSY, PILLION LH

43700-12B00-000  

43700-12B01-000
 4370012B00000

Unit Price

13
WASHER, FOOTREST RUBBER
WASHER

43631-34A01-000   4363134A01000

4363134A01000

Unit Price

14
PIN

09208-06008-000   0920806008000

0920806008000

Unit Price

15
COTTER PIN

D8332-1104A-000   D83321104A000

D83321104A000
Not available
16
BRACKET, PILLION RH (BLACK)

43810-24H00-EE3   4381024H00EE3

4381024H00EE3
Not available
17
BRACKET, PILLION LH (BLACK)

43820-24H00-EE3   4382024H00EE3

4382024H00EE3
Not available
18
BOLT

07120-0820B-000   071200820B000

071200820B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
