CRANKCASE COVER

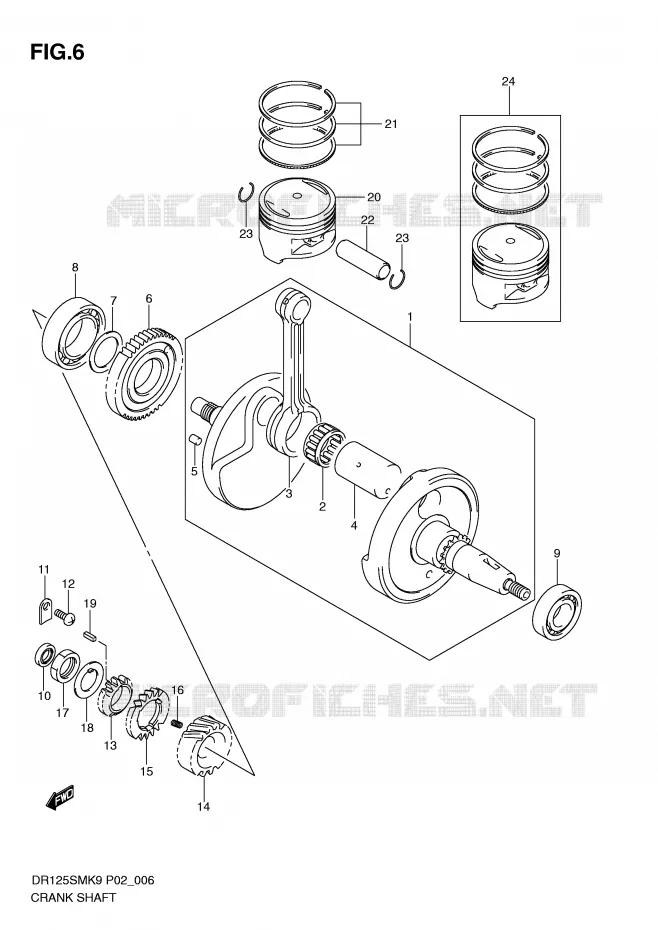

CRANKSHAFT FOR SUZUKI DR 125 2010

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT ASSY

12200-26H00-000 1220026H00000

Not available

BEARING (28X36X15.8)

09263-28045-0B0 09263280450B0

Not available

ROD, CONNECTING

12161-12F80-0B0 1216112F800B0

Not available

PIN, CRANK

12211-25H00-000 1221125H00000

Not available

PIN
PIN, GEAR

04221-08129-000 0422108129000

$3,97

Unit Price

GEAR, CRANK BALANCER DRIVE

12661-25H00-000 1266125H00000

Not available

SHIM, CRANKSHAFT, R (T:1.35)

09181-28022-000 0918128022000

Not available

SHIM, CRANKSHAFT, R (T:1.45)

09181-28023-000 0918128023000

Not available

SHIM, CRANKSHAFT, R (T:1.55)

09181-28024-000 0918128024000

Not available

SHIM, CRANKSHAFT, R (T:1.6)

09181-28025-000 0918128025000

Not available

SHIM, CRANKSHAFT, R (T:1.65)

09181-28026-000 0918128026000

Not available

SHIM, CRANKSHAFT, R (T:1.7)

09181-28027-000 0918128027000

Not available

SHIM, CRANKSHAFT, R (T:1.75)

09181-28028-000 0918128028000

Not available

SHIM, CRANKSHAFT, R (T:1.8)

09181-28029-000 0918128029000

Not available

SHIM, CRANKSHAFT, R (T:0.9)

09181-28192-000 0918128192000

Not available

SHIM, CRANKSHAFT, R (T:0.95)

09181-28193-000 0918128193000

Not available

SHIM, CRANKSHAFT, R (T:1.0)

09181-28194-000 0918128194000

Not available

SHIM, CRANKSHAFT, R (T:1.05)

09181-28197-000 0918128197000

Not available

SHIM, CRANKSHAFT, R (T:1.1)

09181-28200-000 0918128200000

Not available

SHIM, CRANKSHAFT, R (T:1.15)

09181-28202-000 0918128202000

Not available

SHIM, CRANKSHAFT, R (T:1.2)

09181-28204-000 0918128204000

Not available

SHIM, CRANKSHAFT, R (T:1.25)

09181-28207-000 0918128207000

Not available

SHIM, CRANKSHAFT, R (T:1.3)

09181-28209-000 0918128209000

Not available

SHIM, CRANKSHAFT, R (T:1.4)

09181-28210-000 0918128210000

Not available

SHIM, CRANKSHAFT, R (T:1.5)

09181-28211-000 0918128211000

Not available

BEARING, RH (28X68X17)

09262-28046-000 0926228046000

Not available

BEARING, LH (35X72X17)

09262-35085-000 0926235085000

Not available

OIL SEAL, RH (12X21X7)

09282-12014-000 0928212014000

Not available

RETAINER, BEARING
RETAINER

24742-18A00-000 2474218A00000

$5,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

GEAR, OIL PUMP DRIVE

16321-05220-000 1632105220000

Not available

GEAR, PRIMARY DRIVE (NT:20)

21111-25H00-000 2111125H00000

Not available

GEAR, PRIMARY DRIVE NO.2 (NT:2

21112-25H00-000 2111225H00000

Not available

SPRING, PRIMARY DRIVE GEAR
SPRING

21114-35C00-000 2111435C00000

$5,97

Unit Price

NUT

09140-16035-000 0914016035000

Not available

WASHER
LOCK WASHER

09166-16012-000 0916616012000

$3,97

Unit Price

KEY
KEY, GEAR

09421-04004-000 0942104004000

$6,97

Unit Price

PISTON

12111-24H00-0F0 1211124H000F0

Not available

RING SET, PISTON

12140-24H00-000 1214024H00000

Not available

PIN, PISTON

12151-12F00-000 1215112F00000

Not available

PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000 0938114001000

$3,97

Unit Price

PISTON SET (OS:0.5)

12100-24H10-050 1210024H10050

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
