Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI DR 125 2010

CRANKSHAFT

Item numbers

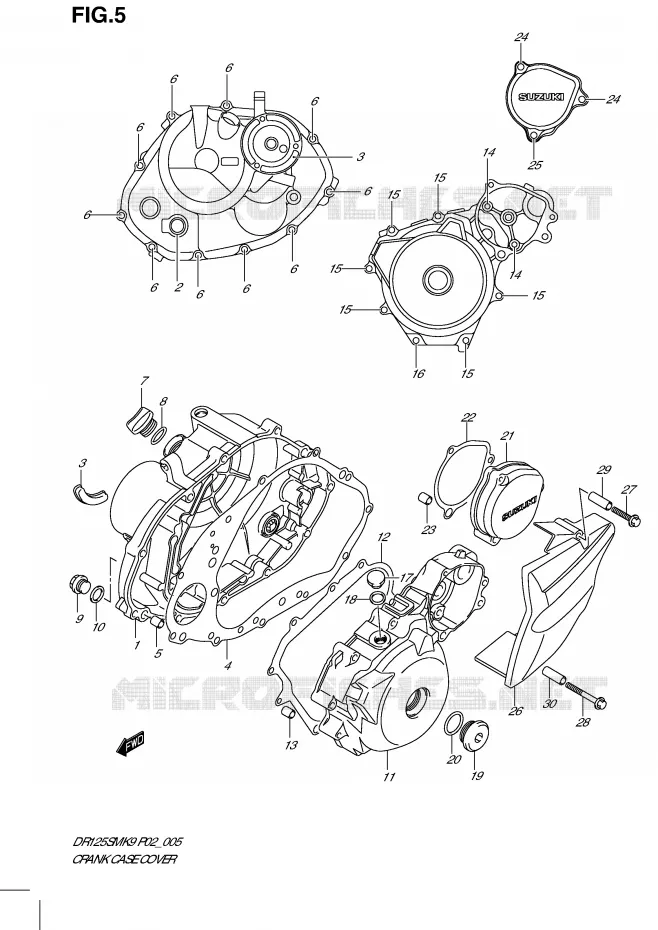

CRANKCASE COVER Suzuki MOTO 125 DR 2010 DR125SML0
1
1
2
3
3
4
5
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
11
12
13
14
14
15
15
15
15
15
15
16
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
1
COVER, CLUTCH

11340-24H00-000   1134024H00000

1134024H00000
Not available
1
COVER, CLUTCH

11340-24H10-000   1134024H10000

1134024H10000
Not available
2
LENS,OIL LEVEL CHECK<br />LENS, OIL LEVEL
LENS, OIL LEVEL CHECK
LENS, OIL LEVEL

11971-45010-000   1197145010000

1197145010000

Unit Price

3
PLUG, CLUTCH COVER

11342-30H00-000   1134230H00000

1134230H00000
Not available
4
GASKET, CLUTCH COVER

11482-25H00-000   1148225H00000

1148225H00000
Not available
5
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

6
BOLT
BOLT (6X30)

01547-0630A-000   015470630A000

015470630A000

Unit Price

7
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

8
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

9
PLUG<br />PLUG, OIL CHECK
PLUG
PLUG, OIL CHECK

09247-14026-000   0924714026000

0924714026000

Unit Price

10
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

11
COVER, MAGNETO

11351-24H00-000   1135124H00000

1135124H00000
Not available
11
COVER, MAGNETO

11351-24H10-000   1135124H10000

1135124H10000
Not available
12
GASKET, MAGNETO COVER

11483-25H01-000   1148325H01000

1148325H01000
Not available
13
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

14
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

15
BOLT
BOLT (6X35)

01547-0635A-000   015470635A000

015470635A000

Unit Price

16
BOLT
BOLT (6X45)

01547-0645A-000   015470645A000

015470645A000

Unit Price

17
PLUG, T.D.C

09247-12104-000   0924712104000

0924712104000

Unit Price

18
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
19
PLUG, CRANKSHAFT HOLE

09259-26023-000   0925926023000

0925926023000
Not available
20
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

21
COVER, STARTER IDLE GEAR

11352-24H00-000   1135224H00000

1135224H00000
Not available
21
COVER, STARTER IDLE GEAR

11352-24H10-000   1135224H10000

1135224H10000
Not available
22
GASKET

11485-25H00-000   1148525H00000

1148525H00000
Not available
23
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

24
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

25
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

26
COVER, ENGINE SPROCKET

11361-24H00-20H   1136124H0020H

1136124H0020H
Not available
27
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

28
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

29
SPACER

11362-24H00-000   1136224H00000

1136224H00000
Not available
30
SPACER

11363-24H00-000   1136324H00000

1136324H00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki DR 125 SM of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 2010

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 2010

Select your Suzuki 2010 model

125 DR 2010 DR125SML0
125 DR 2010 DR125SML0
125 DR 2010 DR125SML0

DR 125 SM

Suzuki DR

Displacement: 125 cc
Year: 2010
Model code DR125SML0
