REAR WHEEL

REAR CALIPER FOR SUZUKI DR 125 2010

REAR BRAKE MASTER CYLINDER

Item numbers

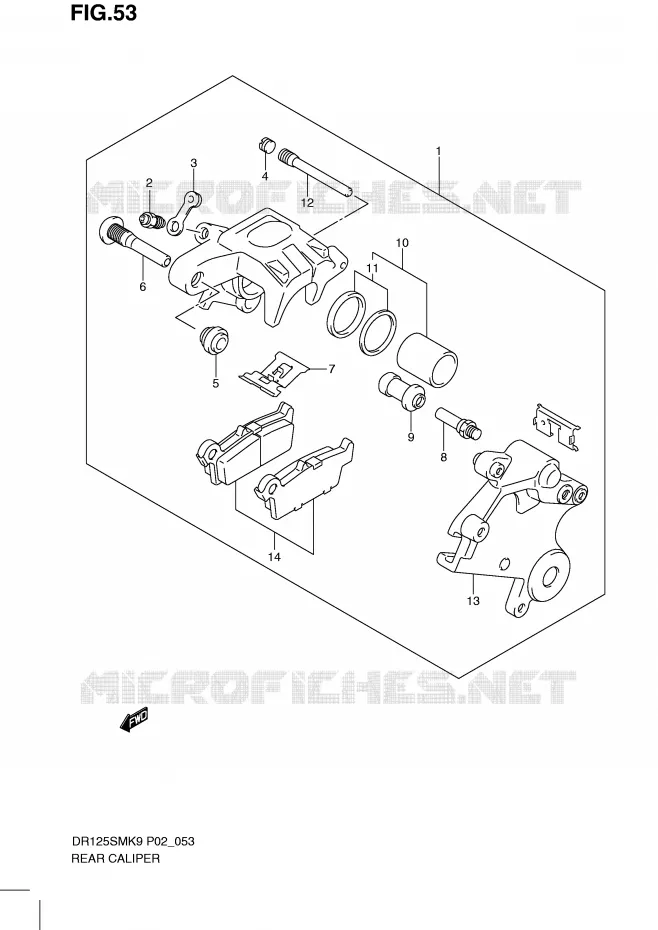

REAR CALIPER Suzuki MOTO 125 DR 2010 DR125SML0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
CALIPER ASSY, REAR

69100-C44-E30J000   69100C44E30J000

69100C44E30J000
Not available
2
BLEEDER

59121-C01-A00J000   59121C01A00J000

59121C01A00J000
Not available
3
CAP, BLEEDER

59122-C01-A00J000   59122C01A00J000

59122C01A00J000
Not available
4
PLUG, PIN

59146-C21-E10J000   59146C21E10J000

59146C21E10J000
Not available
5
BOOT

59303-C14-500J000   59303C14500J000

59303C14500J000
Not available
6
PIN, BOLT

59305-C36-E00J000   59305C36E00J000

59305C36E00J000
Not available
7
SPRING, PAD

59315-C36-E00J000   59315C36E00J000

59315C36E00J000
Not available
8
PIN

59382-C14-500J000   59382C14500J000

59382C14500J000
Not available
9
BOOT

59386-C13-A00J000   59386C13A00J000

59386C13A00J000
Not available
10
PISTON SET

69100-C43-810J000   69100C43810J000

69100C43810J000
Not available
11
SEAL SET, PISTON

69100-C36-810J000   69100C36810J000

69100C36810J000
Not available
12
PIN, HANGER

69345-C43-D00J000   69345C43D00J000

69345C43D00J000
Not available
13
BRACKET

69351-C24-H00J000   69351C24H00J000

69351C24H00J000
Not available
14
PAD & RETAINER SET

69101-C44-840J000   69101C44840J000

69101C44840J000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
