CLUTCH

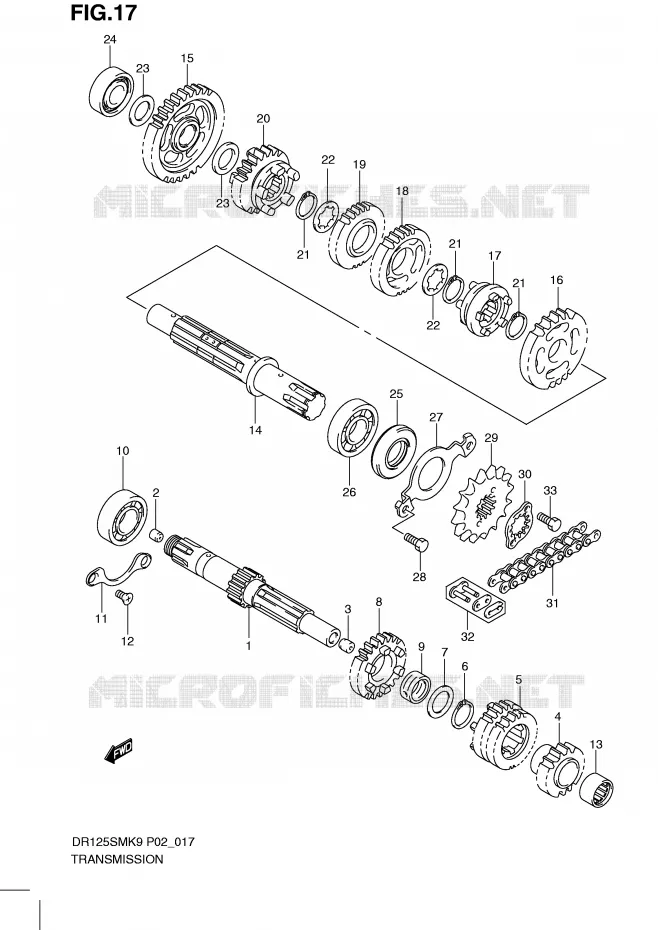

TRANSMISSION FOR SUZUKI DR 125 2010

GEAR SHIFTING ASSY

Item numbers

SHAFT, COUNTER (NT:11)

24121-25H00-000 2412125H00000

Not available

NOZZLE, RH

24125-25H00-000 2412525H00000

Not available

NOZZLE, LH

24125-25H10-000 2412525H10000

Not available

GEAR, 2ND DRIVE (NT:14)

24221-25H00-000 2422125H00000

Not available

GEAR, 3RD & 4TH (NT:19/21)

24231-25H00-000 2423125H00000

Not available

CIRCLIP ENG SPROCKET
CIRCLIP, 5TH DRIVE

09380-20009-000 0938020009000

$3,97

Unit Price

SHIM(20X26X1)
WASHER (20X26X1)

09181-20139-000 0918120139000

$4,97

Unit Price

GEAR, 5TH DRIVE (NT:23)

24251-25H00-000 2425125H00000

Not available

BUSH, 5TH DRIVE GEAR

24252-24H00-000 2425224H00000

Not available

BEARING

09262-20069-000

09262-20121-000

$43,97

Unit Price

RETAINER, DRIVE SHAFT BEARING
RETAINER, COUNTER BEARING

24741-05200-000 2474105200000

$6,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

BALL BEARING
BEARING, COUNTERSHAFT LH

08123-60027-000 0812360027000

$28,97

Unit Price

SHAFT, DRIVE

24130-24H00-000 2413024H00000

Not available

GEAR, 1ST DRIVEN (NT:33)

24310-25H00-000 2431025H00000

Not available

GEAR, 2ND DRIVEN (NT:26)

24320-25H00-000 2432025H00000

Not available

WHEEL, SLIDING DOG

24421-25H00-000 2442125H00000

Not available

GEAR, 3RD DRIVEN (NT:26)

24331-25H00-000 2433125H00000

Not available

GEAR, 4TH DRIVEN (NT:23)

24341-25H00-000 2434125H00000

Not available

GEAR, 5TH DRIVEN (NT:22)

24351-25H00-000 2435125H00000

Not available

CIRCLIP ENG SPROCKET
CIRCLIP, 2ND/3RD/4TH DRIVEN

09380-20009-000 0938020009000

$3,97

Unit Price

WASHER, LOCK
WASHER, 3RD/4TH DRIVEN (20.5X2

09167-20011-000 0916720011000

$3,97

Unit Price

WASHER, 1ST DRIVEN, R/L

08211-15252-000 0821115252000

Not available

BEARING(15X35X11)
BEARING, RH (15X35X11)

09262-15031-000 0926215031000

$30,97

Unit Price

OIL SEAL (20X40X6)

09283-20058-000 0928320058000

Not available

BEARING, LH (20X47X14)

08120-62040-000 0812062040000

Not available

RETAINER, DRIVE SHAFT

24751-25H00-000 2475125H00000

Not available

BOLT

01500-0610A-000

01500-0610B-000

$3,97

Unit Price

SPROCKET, ENGINE (NT:16)

27511-41350-000 2751141350000

Not available

WASHER, SPROCKET

27512-05300-000 2751205300000

Not available

JOINT, DRIVE

27620-16H30-000 2762016H30000

Not available

CHAIN ASSY (RK428SB, 130LE)

27600-16H30-130 2760016H30130

Not available

BOLT

01500-0610A-000

01500-0610B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
