Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LABEL

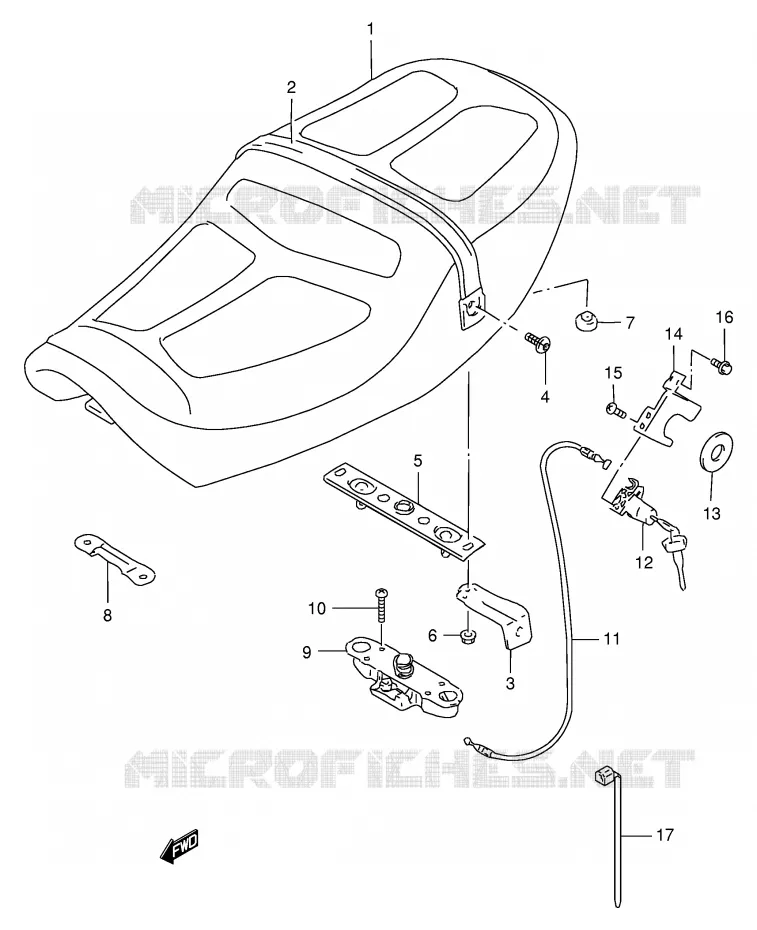

SEAT FOR SUZUKI GSX 400 1997

REAR FAIRING - SEAT COWL

Item numbers
SEAT Suzuki MOTO 400 GSX 1997 GSX400V(E30)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
SEAT ASSY

45100-23E20-AF3   4510023E20AF3

4510023E20AF3
Not available
2
BAND ASSY, SEAT (BALCK)

45180-23E20-P21   4518023E20P21

4518023E20P21
Not available
3
PLATE, RH

45213-23E20-000   4521323E20000

4521323E20000
Not available
3
PLATE, LH

45214-23E20-000   4521423E20000

4521423E20000
Not available
4
BOLT

45186-23E00-000   4518623E00000

4518623E00000
Not available
5
STRIKER, SEAT LOCK

45210-33C00-000   4521033C00000

4521033C00000

Unit Price

6
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

7
CENTER STAND STOP<br />CUSHION
CENTER STAND STOP
CUSHION

09321-10002-000   0932110002000

0932110002000

Unit Price

8
PLATE, SEAT FR HOOK
PLATE, SEAT FRONT HOOK

45119-17E00-000   4511917E00000

4511917E00000

Unit Price

9
LOCK ASSY, SEAT STRIKER
LOCK ASSY, SEAT STRIKER

45220-13601-000   4522013601000

4522013601000

Unit Price

10
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

11
CABLE, SEAT LOCK

45280-23E00-000   4528023E00000

4528023E00000
Not available
12
LOCK SET, SEAT

95700-31840-000  

95700-31841-000
 9570031840000

Unit Price

13
COVER, SIDE HOLE

45531-23E00-000   4553123E00000

4553123E00000
Not available
14
BRACKET, SEAT LOCK

45289-23E20-000   4528923E20000

4528923E20000
Not available
15
SCREW

02142-05103-000  

02142-0510A-000
 0214205103000

Unit Price

16
BOLT

01547-06123-000  

01547-0612B-000
 0154706123000

Unit Price

17
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 400 GSX 1997

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 GSX 1997

Select your Suzuki 1997 model

400 GSX 1997 GSX400V(E30)

Suzuki GSX

Displacement: 400 cc
Year: 1997
Model code GSX400V(E30)
