Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLEBAR

LEVERS - HANDGRIPS FOR SUZUKI GSX 400 1997

FRONT FORK

Item numbers

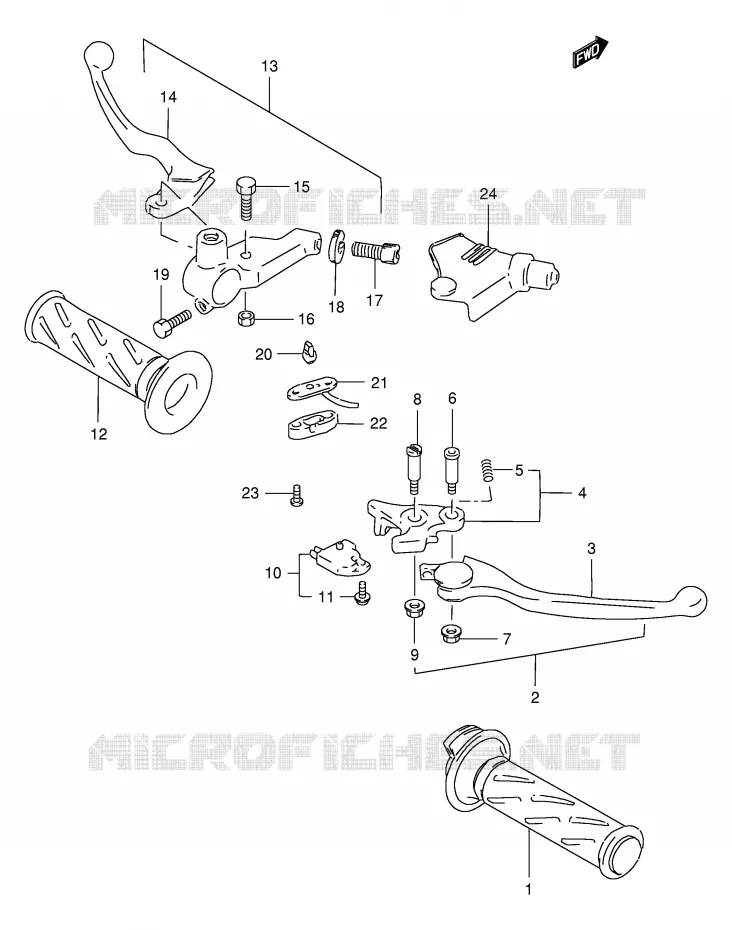

LEVERS - HANDGRIPS Suzuki MOTO 400 GSX 1997 GSX400V(E30)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
GRIP,THROTTLE
GRIP, THROTTLE

57110-46E01-000  

57110-46E02-000
 5711046E01000

Unit Price

2
LEVER ASSY, BRAKE

57300-32C01-000  

57300-32C10-000
 5730032C01000

Unit Price

3
LEVER, ADJUST
LEVER, ADJUST

57420-32C00-000   5742032C00000

5742032C00000

Unit Price

4
KNOCKER

57430-32C00-000  

57430-32C10-000
 5743032C00000

Unit Price

5
SPRING
SPRING

57438-32C00-000   5743832C00000

5743832C00000

Unit Price

6
BOLT, LEVER
BOLT, LEVER

57437-32C01-000   5743732C01000

5743732C01000

Unit Price

7
NUT

08319-31065-000  

08319-3106A-000
 0831931065000

Unit Price

8
BOLT,LEVER PIVOT<br />BOLT, LEVER
BOLT, LEVER PIVOT
BOLT, LEVER

57431-17C00-000   5743117C00000

5743117C00000

Unit Price

9
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

10
SWITCH ASSY, STOP

57460-17C00-000  

57460-14J02-000
 5746017C00000

Unit Price

11
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

12
GRIP, L(BLACK)

57211-22D01-000  

57211-22D02-291
 5721122D01000

Unit Price

13
DISCONTINUE

57500-01D01-000  

5750001D01000
Not available
14
DISCONTINUE

57620-01D00-000  

5762001D00000
Not available
15
BOLT,LEVER SET<br />BOLT, LEVER
BOLT, LEVER SET
BOLT, LEVER

57531-14A00-000   5753114A00000

5753114A00000

Unit Price

16
NUT

08319-21065-000  

08319-21063-000
 0831921065000

Unit Price

17
ADJUSTER, CABLE
ADJUSTER, CABLE

57441-11010-000   5744111010000

5744111010000

Unit Price

18
NUT, CABLE ADJUSTER
NUT, CABLE ADJUSTER

57442-11010-000   5744211010000

5744211010000

Unit Price

19
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

20
CONTACT,SWITCH<br />CONTACT
CONTACT, SWITCH
CONTACT

57465-18601-000   5746518601000

5746518601000

Unit Price

21
HARNESS ASSY, WIRE
WIRE HARNESS

57541-49100-000   5754149100000

5754149100000

Unit Price

22
DISCONTINUE
DISCONTINUE

57481-33010-000  

5748133010000
Not available
23
SCREW

57484-49110-000   5748449110000

5748449110000

Unit Price

24
COVER, CLUTCH LEVER
COVER, CLUTCH LEVER

57661-33400-000   5766133400000

5766133400000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVERS - HANDGRIPS of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 400 GSX 1997

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 GSX 1997

Select your Suzuki 1997 model

400 GSX 1997 GSX400V(E30)

Suzuki GSX

Displacement: 400 cc
Year: 1997
Model code GSX400V(E30)
