STARTER MOTOR CLUTCH

CAM SHAFT - VALVE FOR SUZUKI GSX 400 1997

TIMING

Item numbers

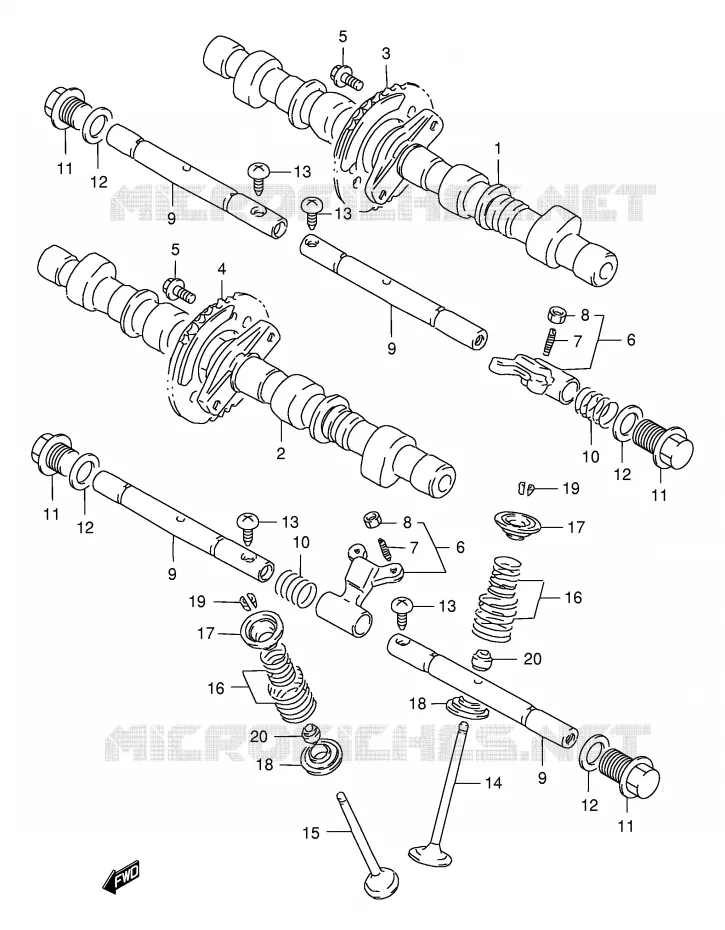

CAM SHAFT - VALVE Suzuki MOTO 400 GSX 1997 GSX400V(E30)
1
2
3
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
11
11
11
11
12
12
12
12
13
13
13
13
14
15
16
16
17
17
18
18
19
19
20
20
1
CAM SHAFT, INTAKE

12711-46D10-000   1271146D10000

1271146D10000
Not available
2
CAM SHAFT, EXHAUST

12721-46D10-000   1272146D10000

1272146D10000
Not available
3
SPROCKET, CAM SHAFT INTAKE

12740-32C00-000   1274032C00000

1274032C00000
Not available
4
SPROCKET, CAM SHAFT EXHAUST

12750-32C00-000   1275032C00000

1275032C00000
Not available
5
BOLT(7X10)
BOLT

09103-07003-000   0910307003000

0910307003000

Unit Price

6
ARM, VALVE BLOCKER

12840-46D00-000   1284046D00000

1284046D00000
Not available
7
SCREW, TAPPET ADJUSTING
SCREW

12842-32C00-000   1284232C00000

1284232C00000

Unit Price

8
NUT,TAPPET ADJUSTING<br />NUT
NUT, TAPPET ADJUSTING
NUT

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

9
SHAFT, VALVE LOCKER ARM

12861-46D01-000   1286146D01000

1286146D01000
Not available
10
SPRING
SPRING

09440-13014-000   0944013014000

0944013014000

Unit Price

11
PLUG
PLUG

09247-14026-000   0924714026000

0924714026000

Unit Price

12
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

13
* 09136-06116
SCREW (6X16)

09139-06074-000   0913906074000

0913906074000

Unit Price

14
VALVE, INTAKE

12911-46D00-000   1291146D00000

1291146D00000
Not available
15
VALVE, EXHAUST

12912-46D00-000   1291246D00000

1291246D00000
Not available
16
SPRING SET, VALVE

12920-04A00-000   1292004A00000

1292004A00000
Not available
17
DISCONTINUE
RETAINER, VALVE SPRING

12931-32C01-000   1293132C01000

1293132C01000
Not available
18
SEAT, VALVE SPRING

12933-33201-000   1293333201000

1293333201000

Unit Price

19
COTTER, VALVE

12932-32C00-000   1293232C00000

1293232C00000

Unit Price

20
OIL SEAL<br />OIL SEAL (4.5X10X8)
OIL SEAL
OIL SEAL (4.5X10X8)

09289-04002-000   0928904002000

0928904002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT - VALVE of your Suzuki of GSX. Let us know if you have any questions.
