FRONT MASTER CYLINDER

SWINGARM FOR SUZUKI GSX 400 1997

CHAIN GUARD

Item numbers

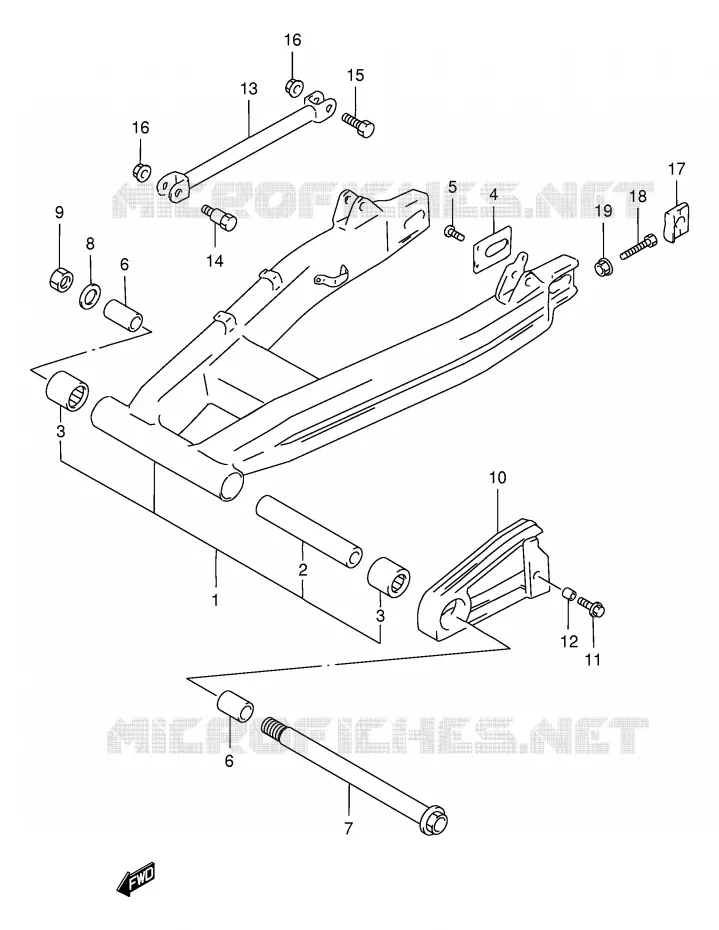

SWINGARM Suzuki MOTO 400 GSX 1997 GSX400V(E30)
1
2
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
1
SWINGING ARM ASSY, REAR

61000-23E00-000   6100023E00000

6100023E00000
Not available
2
SPACER<br />SPACER (20.8X27.2X146)
SPACER
SPACER (20.8X27.2X146)

09180-20108-000   0918020108000

0918020108000

Unit Price

3
BEARING
BEARING

09263-25059-000  

09263-25073-000
 0926325059000

Unit Price

4
PLATE, SWINGING ARM

61124-23E00-000   6112423E00000

6112423E00000
Not available
5
SCREW

02142-06103-000  

02142-0610B-000
 0214206103000

Unit Price

6
SPACER,RR SWGARM PIVOT<br />SPACER
SPACER, RR SWGARM PIVOT
SPACER

61251-21E00-000   6125121E00000

6125121E00000

Unit Price

7
DISCONTINUE
SHAFT, PIVOT

61211-06C01-000   6121106C01000

6121106C01000
Not available
8
WASHER, 18.5X28X2.6

09160-18026-000  

09160-18030-000
 0916018026000

Unit Price

9
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

10
BUFFER, CHAIN TOUCH DIFENSE

61273-23E00-000   6127323E00000

6127323E00000
Not available
11
BOLT

09116-06111-000  

09116-06152-000
 0911606111000

Unit Price

12
SPACER (6.5X10X7)
SPACER (6.5X10X7)

09180-06283-000   0918006283000

0918006283000

Unit Price

13
TORQUELINK,RR<br />TORQUE LINK, REAR (BLACK)
TORQUELINK, RR
TORQUE LINK, REAR (BLACK)

64310-10D00-019   6431010D00019

6431010D00019

Unit Price

14
BOLT, FRONT (10X39)
BOLT, FRONT (10X39)

09111-10051-000   0911110051000

0911110051000
Not available
15
BOLT<br />BOLT, REAR (10X34)
BOLT
BOLT, REAR (10X34)

09100-10187-000   0910010187000

0910010187000

Unit Price

16
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

17
ADJUSTER, CHAIN

61411-23E10-000   6141123E10000

6141123E10000
Not available
18
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

19
NUT
NUT

08316-10087-000   0831610087000

0831610087000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 400 GSX 1997

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 GSX 1997

Select your Suzuki 1997 model

400 GSX 1997 GSX400V(E30)

Suzuki GSX

Displacement: 400 cc
Year: 1997
Model code GSX400V(E30)
