Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT

INDICATORS FOR SUZUKI GSX 400 1997

TAIL LIGHT

Item numbers

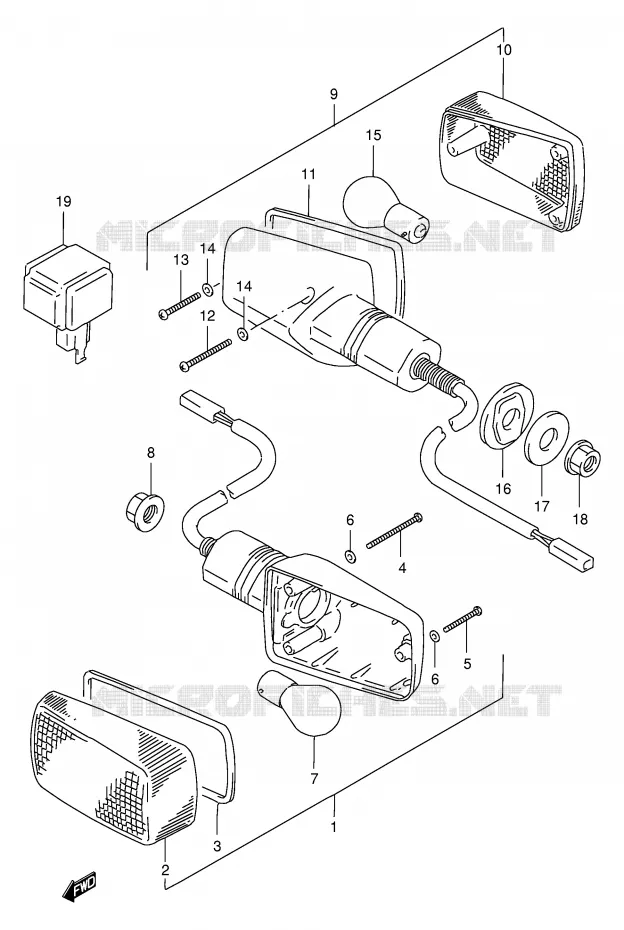

INDICATORS Suzuki MOTO 400 GSX 1997 GSX400V(E30)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
1
LAMP ASSY, FR TURN SIGNAL
LAMP ASSY, FRONT TURN SIGNAL

35601-29E30-000   3560129E30000

3560129E30000

Unit Price

2
LENS
LENS

35612-17C20-000   3561217C20000

3561217C20000

Unit Price

3
GASKET
GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price

4
SCREW(3X30)<br />TAPPING SCREW
SCREW(3X30)
TAPPING SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price

5
SCREW<br />TAPPING SCREW
SCREW
TAPPING SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price

6
GASKET
GASKET

35627-27A02-000   3562727A02000

3562727A02000

Unit Price

7
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

8
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

9
LAMP ASSY,RR TURNSIGNAL<br />LAMP ASSY, REAR TURN SIGNAL
LAMP ASSY, RR TURNSIGNAL
LAMP ASSY, REAR TURN SIGNAL

35603-21E30-000   3560321E30000

3560321E30000

Unit Price

10
LENS
LENS

35652-17C20-000   3565217C20000

3565217C20000

Unit Price

11
GASKET
GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price

12
SCREW(3X30)<br />TAPPING SCREW
SCREW(3X30)
TAPPING SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price

13
SCREW<br />TAPPING SCREW
SCREW
TAPPING SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price

14
GASKET
GASKET

35627-27A02-000   3562727A02000

3562727A02000

Unit Price

15
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

16
SPACER,RR TURNSIGNAL<br />SPACER, REAR TURN SIGNAL
SPACER, RR TURNSIGNAL
SPACER, REAR TURN SIGNAL

35695-17C00-000   3569517C00000

3569517C00000

Unit Price

17
WASHER<br />WASHER (10.5X30X2.3)
WASHER
WASHER (10.5X30X2.3)

09160-10501-000   0916010501000

0916010501000

Unit Price

18
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

19
RELAY ASSY, TURN SIGNAL LAMP
RELAY ASSY, TURN SIGNAL LAMP

38610-45D01-000   3861045D01000

3861045D01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 400 GSX 1997

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 GSX 1997

Select your Suzuki 1997 model

400 GSX 1997 GSX400V(E30)

Suzuki GSX

Displacement: 400 cc
Year: 1997
Model code GSX400V(E30)
