Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CARRIER

FUEL TANK FOR SUZUKI UE 125 2001

FAIRING

Item numbers

TANK, FUEL

44110-34F10-000 4411034F10000

Not available

CAP ASSY, FUEL TANK

44200-21F00-000 4420021F00000

Not available

CUSHION

44281-34F00-000 4428134F00000

Not available

TUBE, INLET INNER

44198-21F00-000 4419821F00000

Not available

TUBE, INLET

44199-21F00-000 4419921F00000

Not available

GAUGE ASSY, FUEL LEVEL

34810-34F10-000 3481034F10000

Not available

PACKING, FUEL LEVEL GAUGE

34825-03A00-000

34825-03A01-000

$15,97

Unit Price

SCREW

02112-76163-000

02112-7616A-000

$3,97

Unit Price

GROMMET, INLET

44261-25E00-000 4426125E00000

Not available

HOSE, DRAIN

44257-34F10-000 4425734F10000

Not available

CLAMP (L:200)

09407-20406-000 0940720406000

Not available

HOSE, AIR VENT

44236-34F00-000 4423634F00000

Not available

CLIP, OUTLET HOSE
CLIP

44481-34F00-000 4448134F00000

$5,97

Unit Price

FILTER, FUEL

44322-17200-000 4432217200000

Not available

CLIP
CLIP, TANK SIDE

09401-11413-000 0940111413000

$4,97

Unit Price

COCK ASSY, FUEL

44300-11B01-000 4430011B01000

$87,97

Unit Price

BOLT

01550-06205-000 0155006205000

Not available

DISCONTINUE
HOSE, VACUUM (L:600->350)

09355-50105-600

Not available

HOSE, VACUUM NO.2

44426-34F00-000 4442634F00000

Not available

HOSE, FUEL COCK & PUM
HOSE, OUTLET NO.1 (L:600->290)

09359-50101-600 0935950101600

$26,97

Unit Price

DISCONTINUE
HOSE, OUTLET NO.2 (L:600->400)

09355-50105-600

Not available

SPRING
SPRING, NO.1

09440-13047-000 0944013047000

$10,97

Unit Price

SPRING
SPRING, NO.2

09440-13035-000 0944013035000

$10,97

Unit Price

CLIP, OUTLET HOSE
CLIP

44481-34F00-000 4448134F00000

$5,97

Unit Price

HOSE, 3-WAY
JOINT, 3 WAY

09367-06002-000 0936706002000

$5,97

Unit Price

CLAMP(L:80)

09404-06434-000

09404-06036-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

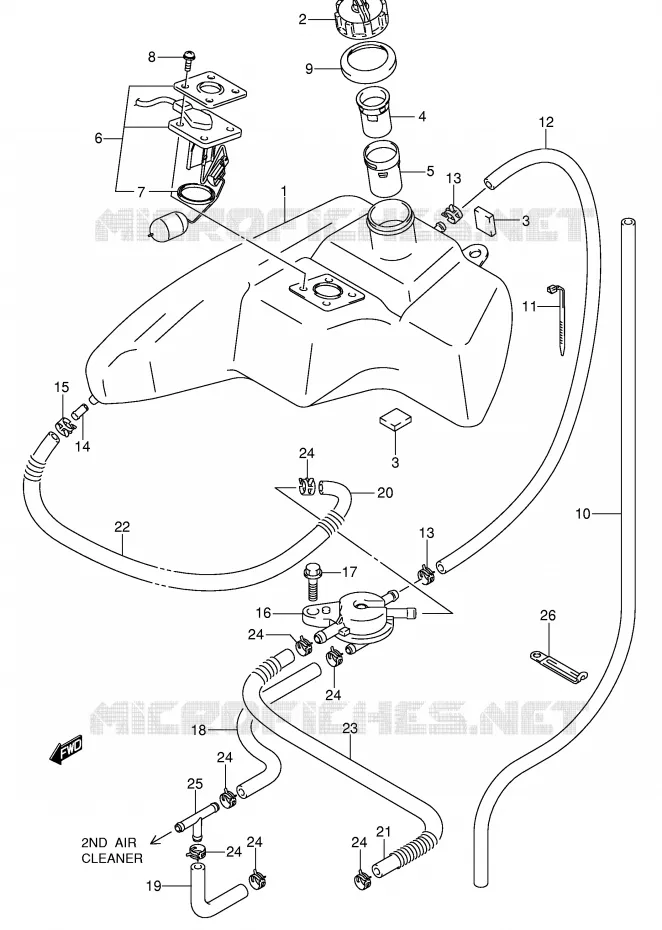

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Suzuki UE 125 of UE. Let us know if you have any questions.
