MUFFLER

OIL PUMP FOR SUZUKI UE 125 2001

ANTI POLLUTION SYSTEM

Item numbers

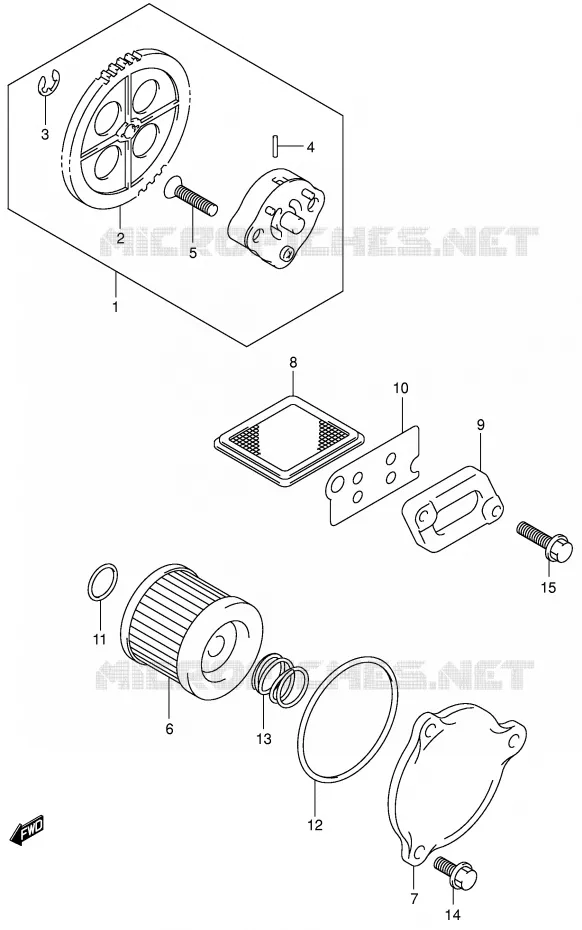

OIL PUMP Suzuki SCOOTER 125 UE 2001 UE125CTK1(P2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
PUMP ASSY, OIL

16400-46F00-000   1640046F00000

1640046F00000
Not available
2
GEAR, OIL PUMP DRIVEN

16331-20E00-000   1633120E00000

1633120E00000
Not available
3
CIRCLIP

16423-20E00-000   1642320E00000

1642320E00000

Unit Price

4
PIN

16421-20E00-000   1642120E00000

1642120E00000

Unit Price

5
SCREW

02122-06253-000  

02122-0625B-000
 0212206253000

Unit Price

6
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-05240-000   1651005240000

1651005240000

Unit Price

7
CAP, OIL FILTER

16512-18900-000   1651218900000

1651218900000

Unit Price

8
STRAINER, ENGINE OIL

16520-09402-000  

16520-09403-000
 1652009402000

Unit Price

9
CAP, OIL STRAINER

16523-20E00-000   1652320E00000

1652320E00000

Unit Price

10
GASKET, OIL STRAINER CAP

16524-46F00-000   1652446F00000

1652446F00000
Not available
11
ENG OIL PUMP O RING<br />O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

12
O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

13
SPRING
SPRING

09440-18002-000   0944018002000

0944018002000

Unit Price

14
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

15
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki UE 125 of UE. Let us know if you have any questions.

Genuine parts for Suzuki 125 UE 2001

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 UE 2001

Select your Suzuki 2001 model

125 UE 2001 UE125CTK1(P2)

UE 125

Suzuki UE

Displacement: 125 cc
Year: 2001
Model code UE125CTK1(P2)
