CRANKCASE COVER

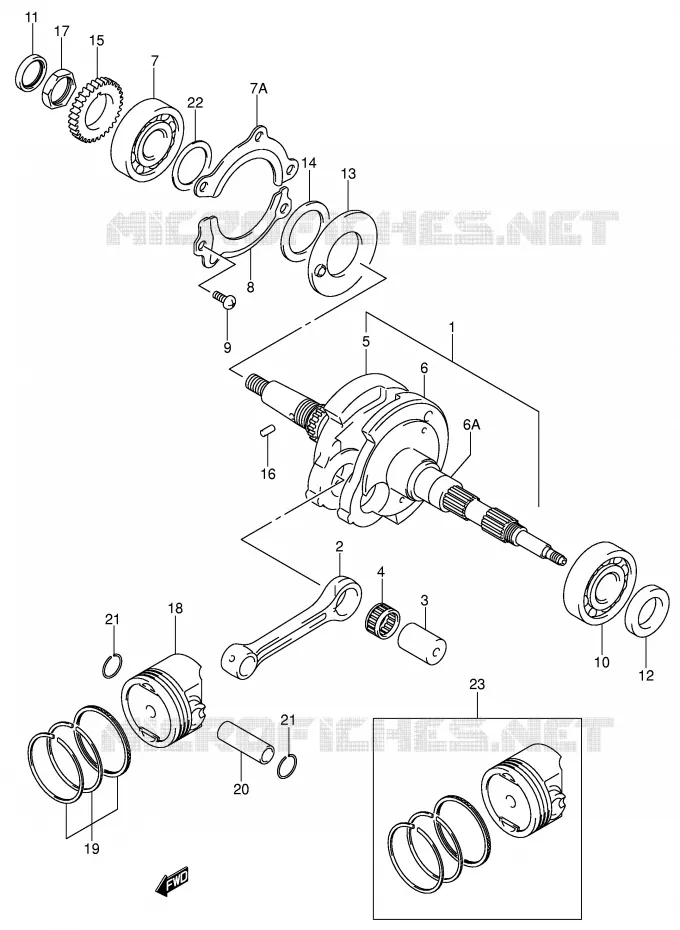

CRANKSHAFT FOR SUZUKI UE 125 2001

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT ASSY

12200-46F00-000 1220046F00000

Not available

ROD, CONNECTING

12161-46F00-0B0 1216146F000B0

Not available

PIN, CRANK

12211-46F00-000 1221146F00000

Not available

BEARING (28X36X15.8)

09263-28027-0B0 09263280270B0

$50,97

Unit Price

CRANKSHAFT, RH

12221-46F00-000 1222146F00000

Not available

CRANKSHAFT, LH

12261-46F00-000 1226146F00000

Not available

SPACER, CRANKSHAFT LH

12262-46F00-000 1226246F00000

Not available

BEARING
BEARING, RH (32X65X17)

09262-32006-000

Not available

RETAINER, CRANKSHAFT BEARING R

12541-46F00-000 1254146F00000

Not available

PLATE, OIL RESERVE

12521-46F00-000 1252146F00000

Not available

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

BEARING(25X62X17)
BEARING, LH (25X62X17)

09262-25084-000 0926225084000

$56,97

Unit Price

OIL SEAL, RH (20X47X6)

09283-20055-000 0928320055000

Not available

SEAL, OIL(25X42X6)
OIL SEAL, LH (25X42X6)

09283-25095-000 0928325095000

$38,97

Unit Price

PLATE, CRANKSHAFT OIL GUIDE

12510-20E10-000 1251020E10000

Not available

RETAINER, OIL GUIDE PLATE

12359-20E00-000 1235920E00000

Not available

GEAR, OIL PUMP DRIVE

16321-20E00-000 1632120E00000

Not available

PIN (4X6)
PIN

04221-04069-000 0422104069000

$2,97

Unit Price

NUT

09140-22008-000 0914022008000

$10,97

Unit Price

PISTON

12111-46F00-0F0 1211146F000F0

Not available

RING SET, PISTON

12140-46F00-000 1214046F00000

Not available

PIN, PISTON

12151-46F00-000 1215146F00000

Not available

PISTON PIN CIRCLIP
SNAP RING

09381-14001-000 0938114001000

$3,97

Unit Price

SHIM (32X40X0.6)

09181-32131-000 0918132131000

$8,97

Unit Price

SHIM (32X40X0.7)

09181-32132-000 0918132132000

$8,97

Unit Price

SHIM (32X40X0.75)

09181-32133-000 0918132133000

$8,97

Unit Price

SHIM (32X40X0.8)

09181-32134-000 0918132134000

$8,97

Unit Price

SHIM (32X40X0.85)

09181-32135-000 0918132135000

$8,97

Unit Price

SHIM (32X40X0.9)

09181-32136-000 0918132136000

$8,97

Unit Price

SHIM (32X40X0.95)

09181-32137-000 0918132137000

$8,97

Unit Price

SHIM (32X40X1)

09181-32138-000 0918132138000

$8,97

Unit Price

SHIM (32X40X1.05)

09181-32141-000 0918132141000

$8,97

Unit Price

SHIM(32X40X1.1)
SHIM (32X40X1.10)

09181-32144-000 0918132144000

$8,97

Unit Price

SHIM (32X40X1.15)

09181-32146-000 0918132146000

$8,97

Unit Price

SHIM(32X40X1.2)
SHIM (32X40X1.20)

09181-32148-000 0918132148000

$8,97

Unit Price

SHIM (32X40X1.25)

09181-32151-000 0918132151000

$8,97

Unit Price

SHIM(32X40X1.3)
SHIM (32X40X1.30)

09181-32153-000 0918132153000

$8,97

Unit Price

SHIM (32X40X0.65)

09181-32017-000 0918132017000

Not available

SHIM (32X40X1.35)

09181-32031-000 0918132031000

Not available

SHIM (32X40X1.45)

09181-32033-000 0918132033000

Not available

SHIM (32X40X1.40)

09181-32154-000 0918132154000

Not available

PISTON SET (OS:0.5)

12100-46F00-050 1210046F00050

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki UE 125 of UE. Let us know if you have any questions.
