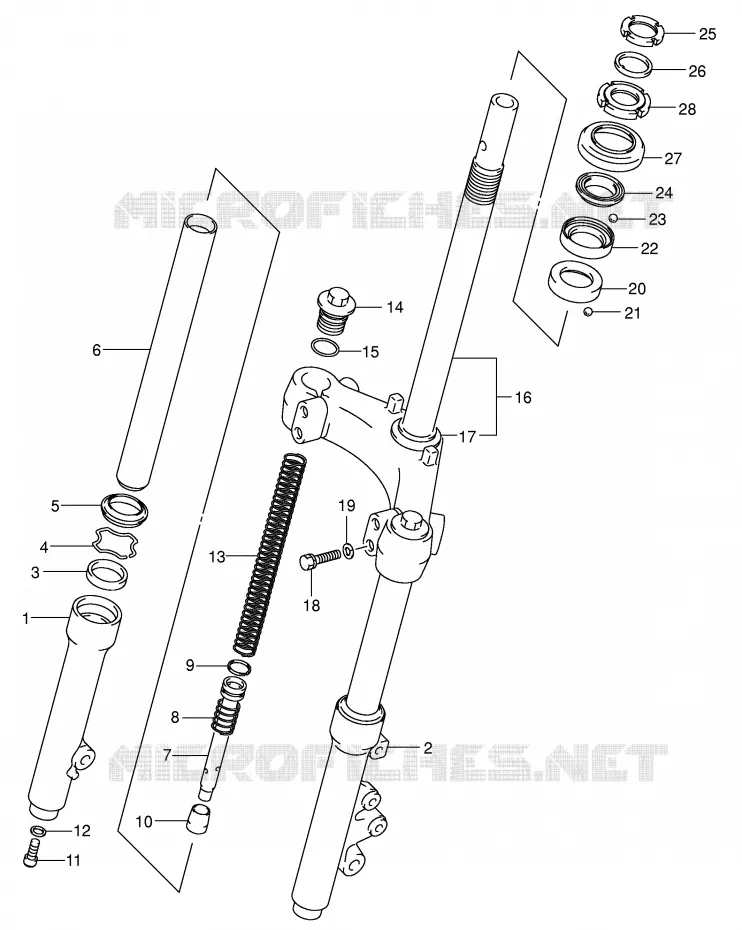

FRONT FORK FOR SUZUKI UE 125 2001

FRONT WHEEL

Item numbers

TUBE, OUTER RH

51130-34F10-000 5113034F10000

Not available

TUBE, OUTER LH

51140-34F10-000 5114034F10000

Not available

SEAL, OIL

51153-36A00-000 5115336A00000

Not available

SNAP RING

51156-34F10-000 5115634F10000

Not available

SEAL, DUST

51173-34F10-000 5117334F10000

Not available

TUBE, INNER

51110-34F10-000 5111034F10000

Not available

CYLINDER

51146-34F10-000 5114634F10000

Not available

SPRING, REBOUND

51177-34F10-000 5117734F10000

Not available

RING, PISTON

51196-34F10-000 5119634F10000

Not available

PIECE, OIL LOCK

51195-34F10-000 5119534F10000

Not available

BOLT, FORK CYLINDER(10X25)
BOLT, CYLINDER

51147-16510-000 5114716510000

$6,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

SPRING, MAIN

51171-34F10-000 5117134F10000

Not available

CAP, FORK

51351-39221-000 5135139221000

Not available

OIL PLUG O RING
O RING (D:1.4, ID:21.8)

09280-22001-000 0928022001000

$3,97

Unit Price

STEM, STEERING

51410-34F10-000 5141034F10000

Not available

RACE, STEERING OUTER LOWER

51622-20E00-000 5162220E00000

Not available

BOLT

01500-08353-000

01500-0835B-000

$5,97

Unit Price

WASHER, LOCK

08321-01083-000

08321-0108B-000

$3,97

Unit Price

RACE, STEERING INNER LOWER

51612-04000-000 5161204000000

Not available

BALL
BALL, LOWER

06111-06003-000 0611106003000

$2,97

Unit Price

RACE, STEERING INNER UPR
RACE, STEERING INNER UPPER

51611-20002-000 5161120002000

$10,97

Unit Price

BALL
BALL, UPPER

06111-06003-000 0611106003000

$2,97

Unit Price

RACE, STEERING OUTER UPR
RACE, STEERING OUTER UPPER

51621-28000-000 5162128000000

$10,97

Unit Price

NUT, STEERING STEM LOCK

51632-02400-000 5163202400000

$20,97

Unit Price

WASHER

09166-26001-000 0916626001000

$2,97

Unit Price

DUST SEAL, STEERING UPR
DUST SEAL, STEERING UPPER

51643-25001-000 5164325001000

$10,97

Unit Price

NUT, STEERING STEM(25X44X10)
NUT, STEERING STEM

51631-28000-000 5163128000000

$20,97

Unit Price

99x

DAMPER ASSY, FRONT FORK RH

51103-34F10-000 5110334F10000

Not available

99x

DAMPER ASSY, FRONT FORK LH

51104-34F10-000 5110434F10000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki UE 125 of UE. Let us know if you have any questions.
