TRANSMISSION (1)

TRANSMISSION (2) FOR SUZUKI UE 125 2001

KICK STARTER

Item numbers

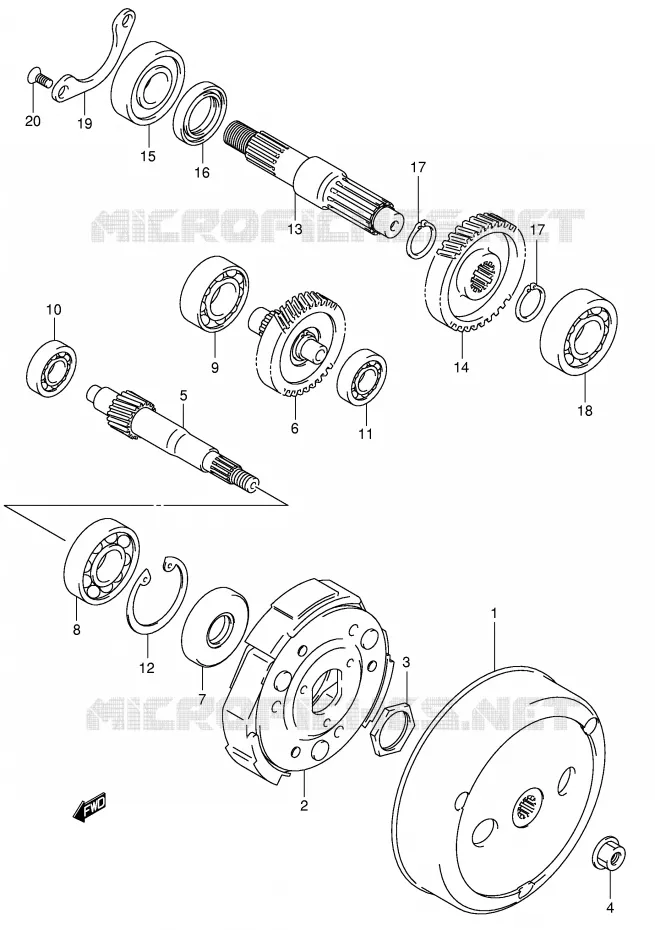

TRANSMISSION (2) Suzuki SCOOTER 125 UE 2001 UE125CTK1(P2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
1
HOUSING, CLUTCH

21220-46F00-000   2122046F00000

2122046F00000
Not available
2
CLUTCH ASSY, SHOE

21501-46F00-000   2150146F00000

2150146F00000
Not available
3
NUT

09140-28004-000   0914028004000

0914028004000

Unit Price

4
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

5
SHAFT, DRIVE (NT:17)

24131-46F00-000   2413146F00000

2413146F00000
Not available
6
SHAFT, IDLE (NT:15/45)

24150-46F01-000   2415046F01000

2415046F01000
Not available
7
OIL SEAL (20X47X6)

09283-20054-000   0928320054000

0928320054000
Not available
8
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

9
BEARING(17X40X12)<br />BEARING, IDLE SHAFT RH
BEARING(17X40X12)
BEARING, IDLE SHAFT RH

09262-17023-000   0926217023000

0926217023000

Unit Price

10
BEARING

08113-62017-000  

08113-6201B-000
 0811362017000

Unit Price

11
BEARING

08113-62017-000  

08113-6201B-000
 0811362017000

Unit Price

12
CIRCLIP, CRANKSH
CIRCLIP

08331-41479-000   0833141479000

0833141479000

Unit Price

13
SHAFT, REAR AXLE

24141-11E10-000   2414111E10000

2414111E10000
Not available
14
GEAR, FINAL DRIVEN (NT:47)

24371-20E00-000   2437120E00000

2437120E00000
Not available
15
DISCONTINUE
BEARING (22X50X14)

09262-22027-000  

0926222027000
Not available
16
OIL SEAL, DR SFT
OIL SEAL (27X40X6)

09283-27010-000   0928327010000

0928327010000

Unit Price

17
CIRCLIP

08331-31226-000  

08331-31229-000
 0833131226000

Unit Price

18
BALL BEARING<br />BEARING
BALL BEARING
BEARING

08110-62030-000   0811062030000

0811062030000

Unit Price

19
RETAINER, AXLE SHAFT BEARING

24751-11E00-000   2475111E00000

2475111E00000
Not available
20
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (2) of your Suzuki UE 125 of UE. Let us know if you have any questions.

Genuine parts for Suzuki 125 UE 2001

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 UE 2001

Select your Suzuki 2001 model

125 UE 2001 UE125CTK1(P2)

UE 125

Suzuki UE

Displacement: 125 cc
Year: 2001
Model code UE125CTK1(P2)
