STARTER MOTOR CLUTCH

CAM SHAFT / VALVE FOR SUZUKI UE 125 2001

TIMING

Item numbers

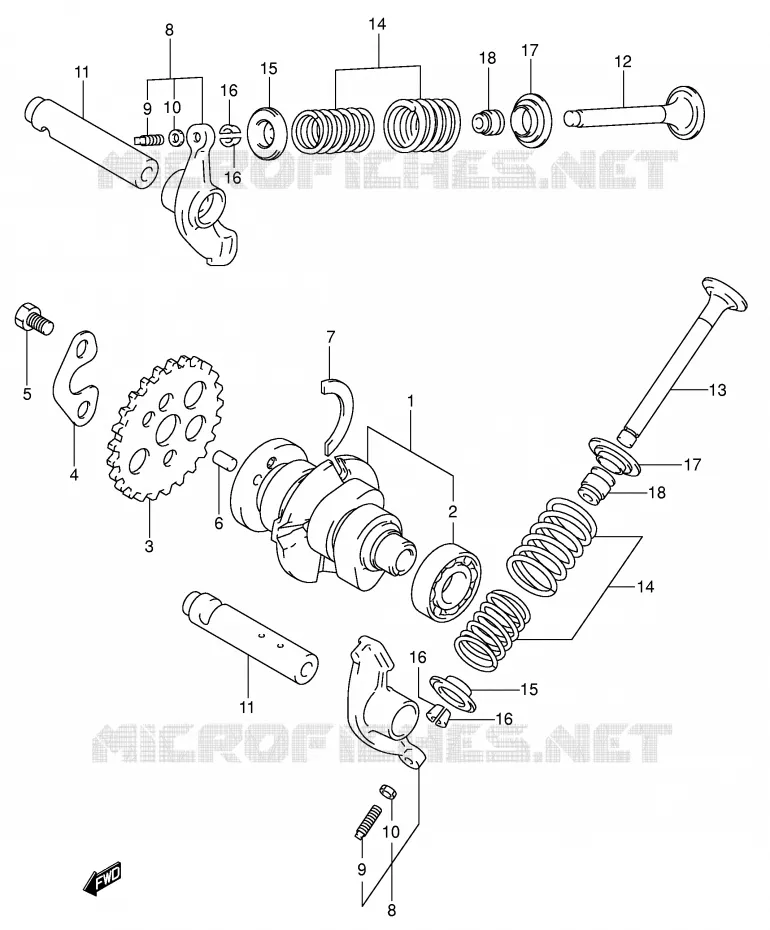

CAM SHAFT/VALVE Suzuki SCOOTER 125 UE 2001 UE125CTK1(P2)
1
2
3
4
5
6
7
8
8
9
9
10
10
11
11
12
13
14
14
15
15
16
16
16
16
17
17
18
18
1
SHAFT, CAM

12710-46F00-000   1271046F00000

1271046F00000
Not available
2
BEARING

09262-15029-000   0926215029000

0926215029000
Not available
3
SPROCKET, CAM SHAFT

12741-20E00-000   1274120E00000

1274120E00000
Not available
4
WASHER, SPROCKET

12747-30A01-000   1274730A01000

1274730A01000
Not available
5
BOLT, SPROCKET
BOLT

09111-06032-000   0911106032000

0911106032000

Unit Price

6
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

7
C RING (ID:24,OD:36,T:1.6)
C RING (ID:24, OD:36, T:1.6)

09390-32001-000   0939032001000

0939032001000
Not available
8
ARM, VALVE ROCKER

12840-46F00-000   1284046F00000

1284046F00000
Not available
9
SCREW, TAPPET ADJUSTING

12842-46F00-000   1284246F00000

1284246F00000
Not available
10
NUT, TAPPET ADJUSTING

12843-46F00-000   1284346F00000

1284346F00000
Not available
11
SHAFT, VALVE ROCKER ARM

12861-20E00-000   1286120E00000

1286120E00000
Not available
12
VALVE, INTAKE

12911-46F01-000   1291146F01000

1291146F01000
Not available
13
VALVE, EXHAUST

12912-46F00-000   1291246F00000

1291246F00000
Not available
14
SPRING SET, VALVE

12920-46F00-000   1292046F00000

1292046F00000
Not available
15
RETAINER, VALVE SPRING

12931-09400-000   1293109400000

1293109400000
Not available
16
COTTER, VALVE
COTTER, VALVE

12932-27A00-000   1293227A00000

1293227A00000

Unit Price

17
SEAT, VALVE SPRING
SEAT, VALVE SPRING

12933-39E00-000   1293339E00000

1293339E00000

Unit Price

18
OIL SEAL

12937-46F00-000   1293746F00000

1293746F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT/VALVE of your Suzuki UE 125 of UE. Let us know if you have any questions.
