PILOT LAMPS

HEADLIGHT (E1, E6, E24) FOR SUZUKI DR 500 1983

HEADLIGHT (MODEL D E2)

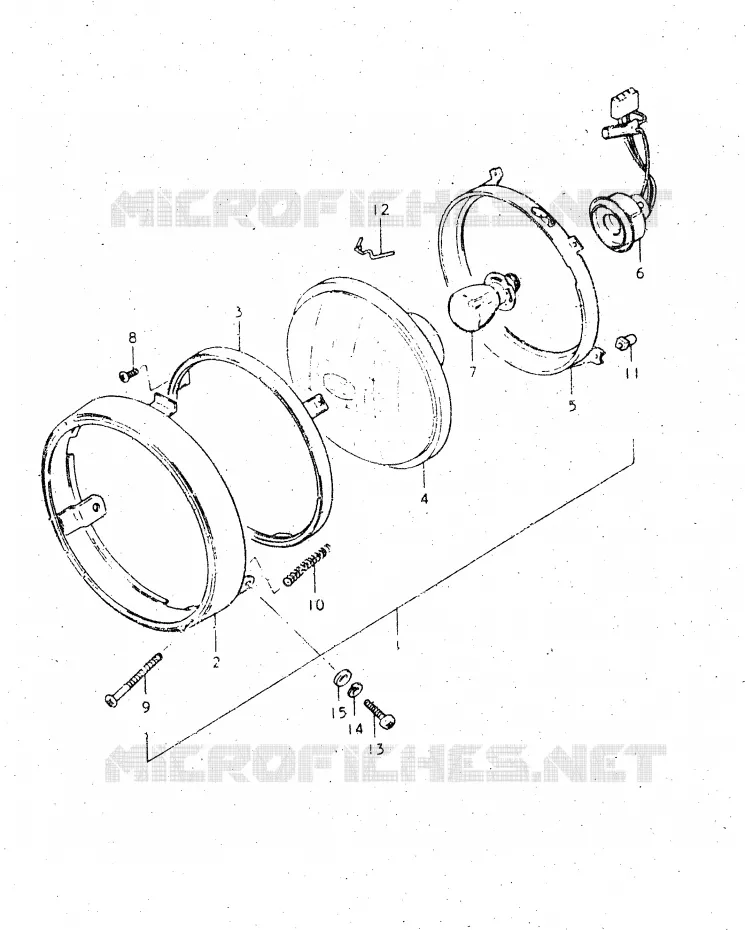

HEADLIGHT (E1, E6, E24) Suzuki MOTO 500 DR 1983 DR500SD(E1)

1

HEADLAMP ASSY

35100-37210-000 3510037210000

Not available

2

DISCONTINUE
RIM

35111-48530-000 3511148530000

Not available

3

RING

35127-48530-000 3512748530000

Not available

4

UNIT

35121-32400-000 3512132400000

Not available

5

RING, MOUNTING

35130-48540-000 3513048540000

Not available

6

SOCKET

35171-37210-000 3517137210000

Not available

7

BULB (6V, 35/35W)

09471-06043-000 0947106043000

Not available

8

.SCREW

02112-04088-000 0211204088000

Not available

9

SCREW

35151-33611-000

35151-45900-000

$8,97

Unit Price

10

SPRING, ADJUSTING
SPRING

35154-31900-000 3515431900000

$9,97

Unit Price

11

NUT

35152-48530-000 3515248530000

Not available

12

SPRING

35128-48530-000 3512848530000

Not available

13

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

14

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

15

LOCK WASHER

08322-21058-000 0832221058000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (E1, E6, E24) of your Suzuki of DR. Let us know if you have any questions.
