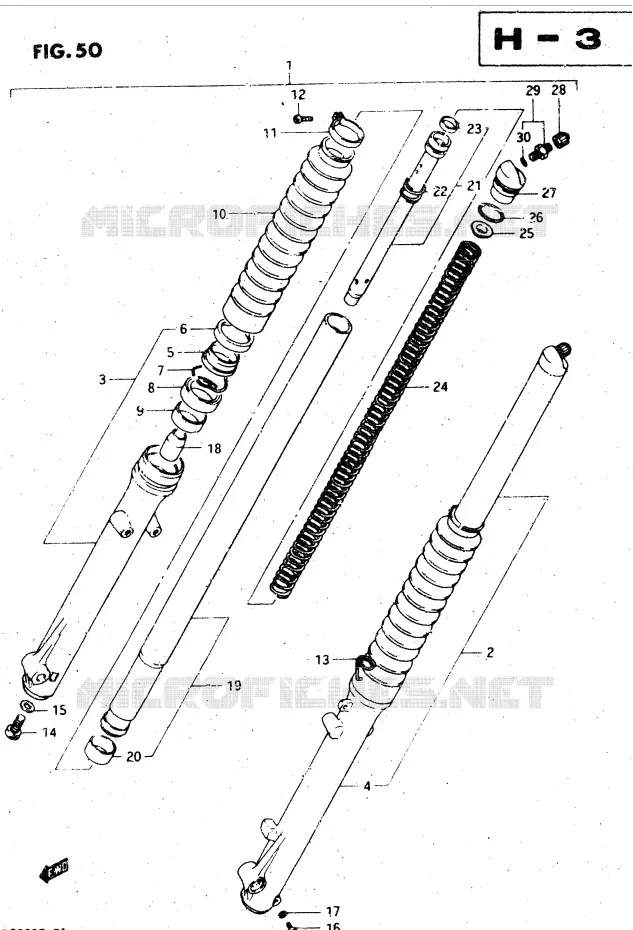

FRONT FORK (MODEL E) Suzuki MOTO 500 DR 1983  DR500SD(E1)
1
DAMPER ASSY, RH (BLACK)

51103-37448-019   5110337448019

5110337448019
Not available

1
DAMPER ASSY, RH (BLUE)

51103-37448-19F   511033744819F

511033744819F
Not available

2
DAMPER ASSY, LH (BLACK)

51104-37448-019   5110437448019

5110437448019
Not available

2
DAMPER ASSY, LH (BLUE)

51104-37448-19F   511043744819F

511043744819F
Not available

3
OUTER TUBE RH

51130-37448-000   5113037448000

5113037448000
Not available

4
OUTER TUBE LH

51140-37448-000   5114037448000

5114037448000
Not available

5
DISCONTINUE
DUST SEAL

51173-40500-000   5117340500000

5117340500000
Not available

6
DISCONTINUE
CASE, DUST SEAL

51149-40500-000   5114940500000

5114940500000
Not available

7
DISCONTINUE
RING, STOPPER

51156-30400-000   5115630400000

5115630400000
Not available

8
OIL SEAL

51153-41211-000   5115341211000

5115341211000
Not available

9
SLIDE METAL

51167-37446-000   5116737446000

5116737446000
Not available

10
BOOT (BLACK)

51571-37448-019   5157137448019

5157137448019
Not available

10
BOOT (BLUE)

51571-37448-19F   515713744819F

515713744819F
Not available

11
DISCONTINUE
BAND

51575-41410-000   5157541410000

5157541410000
Not available

12
.SCREW

02112-04168-000   0211204168000

0211204168000
Not available

13
BAND, LH

51573-37411-000   5157337411000

5157337411000
Not available

14
BOLT,FORK CYLINDER(10X25)<br />BOLT
BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000   5114716510000

5114716510000

Unit Price


15
GASKET

Unit Price


16
.SCREW

02112-04088-000   0211204088000

0211204088000
Not available

17
GASKET,DRAIN,PLUG<br />GASKET
GASKET, DRAIN, PLUG
GASKET

51183-03010-000   5118303010000

5118303010000
Not available

18
PIECE, OIL LOCK

51195-41210-000   5119541210000

5119541210000
Not available

19
INNER TUBE

51110-37446-000   5111037446000

5111037446000
Not available

20
PISTON

31121-37410-000   3112137410000

3112137410000
Not available

21
CYLINDER

51146-30400-000   5114630400000

5114630400000
Not available

22

Unit Price


23
RING

51196-37446-000   5119637446000

5119637446000
Not available

24
SPRING

51171-37446-000   5117137446000

5117137446000
Not available

25
DISCONTINUE
GUIDE, SPRING

51172-38010-000   5117238010000

5117238010000
Not available

26
DISCONTINUE<br />O RING
DISCONTINUE
O RING

51117-16310-000   5111716310000

5111716310000
Not available

27
CAP

51351-37446-000   5135137446000

5135137446000
Not available

28

Unit Price


29
VALVE

51293-44400-000   5129344400000

5129344400000
Not available

30
O RING

51117-14210-000  

09280-06005-000
5111714210000

Unit Price


Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL E) of your Suzuki of DR. Let us know if you have any questions.
