TAIL LIGHT (E1,E4,E6,E21,E24,E25,E34) REFER TO FIG35 (F-4) FOR E2

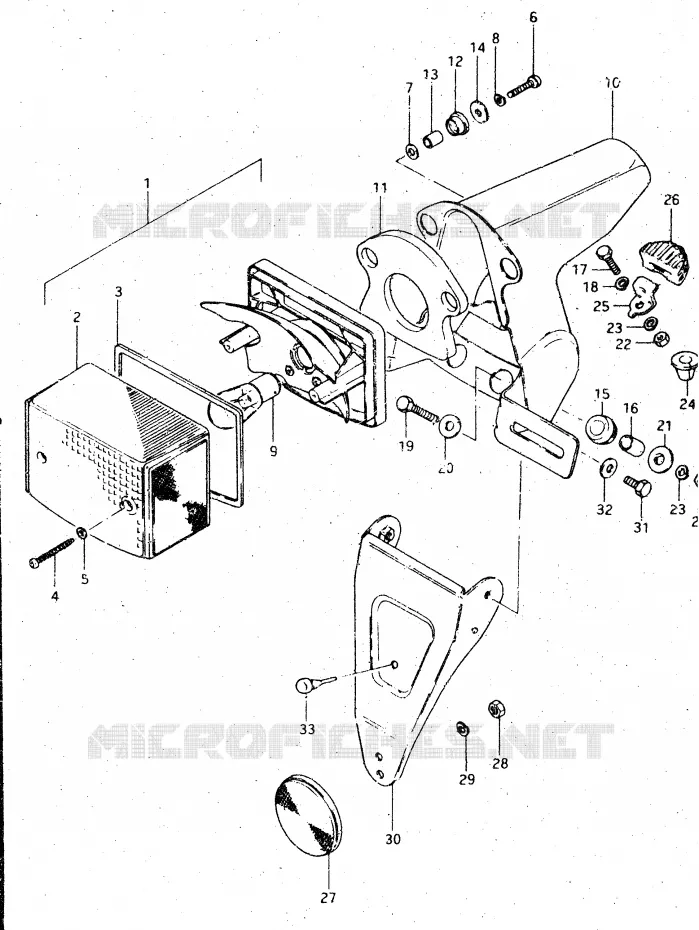

TAIL LIGHT (E2) FOR SUZUKI DR 500 1983

TAIL LIGHT (E18)

LAMP UNIT, TAIL

35720-37460-999 3572037460999

Not available

LAMP UNIT, TAIL

35720-37481-000 3572037481000

Not available

DISCONTINUE
LENS

35712-48524-000 3571248524000

Not available

GASKET

35713-48510-000 3571348510000

$16,97

Unit Price

SCREW

03211-04308-000

03211-04306-000

$2,97

Unit Price

GASKET

35627-43010-000 3562743010000

$3,97

Unit Price

.SCREW

02112-05258-000 0211205258000

Not available

LOCK WASHER

08322-21058-000 0832221058000

Not available

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

BULB (6V, 21/5W)

09471-06034-000 0947106034000

Not available

BRACKET ASSY

35730-37410-000 3573037410000

Not available

BRACKET ASSY

35730-37480-000 3573037480000

Not available

CUSHION

35765-37410-000 3576537410000

Not available

CUSHION

35764-37410-000 3576437410000

Not available

SPACER

35766-36510-000 3576636510000

Not available

WASHER

35727-37410-000 3572737410000

Not available

CUSHION

35765-32410-000 3576532410000

Not available

DISCONTINUE
SPACER

35766-37120-000 3576637120000

Not available

BOLT, ADJUSTER

01107-06208-000 0110706208000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

BOLT FIG.48 (G-10) : GSX1100XD/EXD FIG.49 (G-11) : GSX1100ESD

01107-06308-000 0110706308000

Not available

WASHER 6.5X10X1.2

09160-06027-000

09160-06077-000

$3,97

Unit Price

F FORK COVER WASHER
WASHER

09169-06016-000 0916906016000

$2,97

Unit Price

.NUT

08310-11066-000 0831011066000

Not available

WASHER

08322-21066-000

08322-0106A-000

$3,97

Unit Price

GROMMET

09308-07004-000 0930807004000

Not available

DISCONTINUE
PLATE

35793-37201-000 3579337201000

Not available

CUSHION

35717-37200-000 3571737200000

Not available

REFLEX REFLECTOR, RR
REFLEX REFLECTOR, REAR

35970-30910-000 3597030910000

$77,97

Unit Price

08310-0005A

08310-11056-000

Not available

WASHER, LOCK

08321-21056-000

08321-01053-000

$2,97

Unit Price

BRACKET

35974-37420-000 3597437420000

Not available

BOLT

01107-06104-000

01500-0610B-000

$3,97

Unit Price

WASHER

08322-21064-000

08322-0106A-000

$3,97

Unit Price

77192-50E00
CUSHION

09321-05005-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (E2) of your Suzuki of DR. Let us know if you have any questions.
