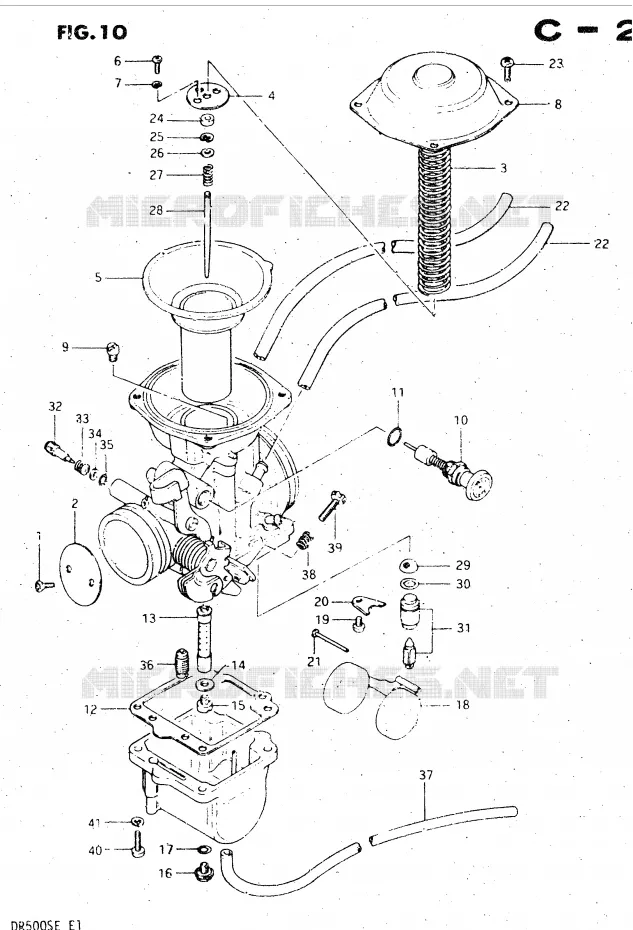

CARBURETOR FOR SUZUKI DR 500 1983

AIR FILTER

SCREW

13604-44080-000 1360444080000

$5,97

Unit Price

VALVE, THROTTLE (125)

13551-37400-000 1355137400000

Not available

SPRING

13503-37400-000 1350337400000

Not available

PLATE

13389-37400-000 1338937400000

$9,97

Unit Price

DISCONTINUED

13500-37400-000 1350037400000

Not available

.SCREW

02112-03088-000 0211203088000

Not available

.LOCK WASHER

08321-21038-000 0832121038000

Not available

COVER

13502-37400-000 1350237400000

$36,97

Unit Price

JET, MAIN

09491-20010-000

09491-97002-000

$37,97

Unit Price

PLUNGER ASSY

13411-37400-000 1341137400000

Not available

O RING

13278-47090-000

13278-47091-000

$2,97

Unit Price

GASKET, FLOAT CHAMBER

13251-37100-000

13251-37101-000

$18,97

Unit Price

DISCONTINUED

09494-00323-000 0949400323000

Not available

CARBURETOR

13200-37410-000 1320037410000

Not available

WASHER

13382-03110-000 1338203110000

$4,97

Unit Price

JET, MAIN
JET, MAIN (125)

09491-25010-000 0949125010000

$16,97

Unit Price

PLUG, DRAIN

13247-44080-000 1324744080000

$17,97

Unit Price

GASKET
O RING, DRAIN

13246-44080-000 1324644080000

$5,97

Unit Price

FLOAT

13250-37400-000 1325037400000

$43,97

Unit Price

SCREW

02112-04068-000

02112-0406B-000

$2,97

Unit Price

PLATE

13373-39110-000 1337339110000

$11,97

Unit Price

PIN, FLOAT

13254-92311-000 1325492311000

$2,97

Unit Price

.HOSE, AIR VENT (5X8X400)

13683-11420-000 1368311420000

Not available

.SCREW

02112-05108-000 0211205108000

Not available

RING

13387-44030-000 1338744030000

$9,97

Unit Price

CLIP, NEEDLE
E RING

13394-31210-000 1339431210000

$6,97

Unit Price

WASHER

13382-44030-000 1338244030000

$5,97

Unit Price

SPRING

13388-44030-000 1338844030000

$11,97

Unit Price

NEEDLE, JET (5C46-2)

13383-37410-000 1338337410000

Not available

.FILTER

13376-65010-000 1337665010000

Not available

.O RING

66263-99050-000 6626399050000

Not available

VALVE ASSY, NEEDLE

13370-37400-000

13370-24C80-000

$118,97

Unit Price

SCREW, AIR

13269-37410-000

13269-37400-000

$18,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

.WASHER

13277-44080-000 1327744080000

Not available

.O RING

13278-44080-000 1327844080000

Not available

DISCONTINUED

09492-60007-000 0949260007000

Not available

.HOSE (3.5X6.5X600)

13683-45070-000 1368345070000

Not available

DISCONTINUED

13271-37100-000 1327137100000

Not available

ADJUSTER

13267-37100-000

13267-25D00-000

$17,97

Unit Price

.SCREW

02112-06168-000 0211206168000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of DR. Let us know if you have any questions.
