Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MUFFLER

OIL PUMP FOR SUZUKI DR 500 1983

CLUTCH

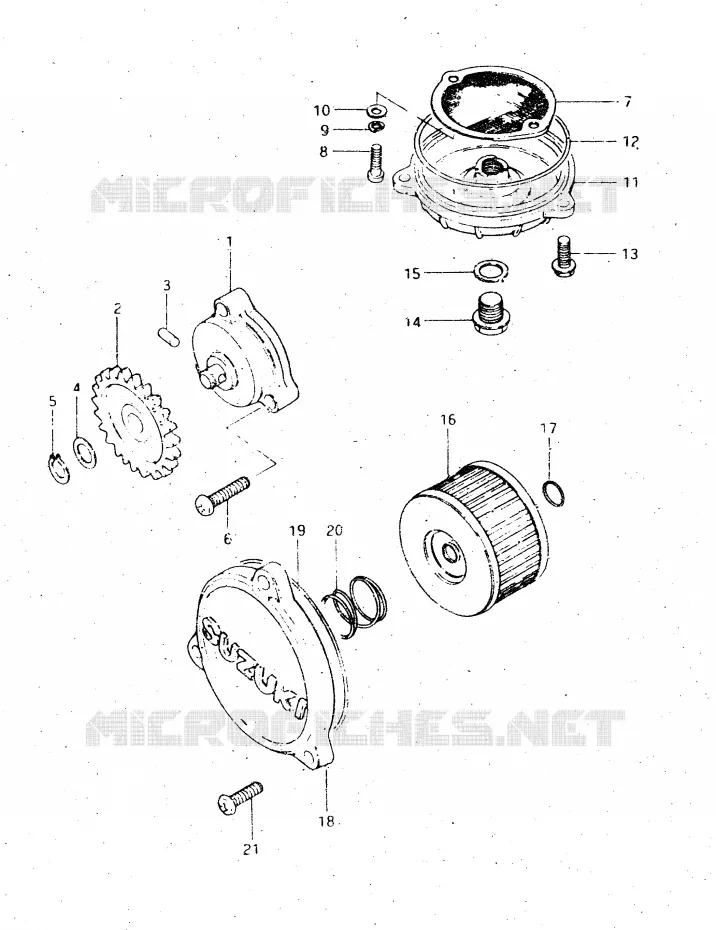

OIL PUMP Suzuki MOTO 500 DR 1983 DR500SD(E1)
1
DISCONTINUE
PUMP, ENGINE OIL

16400-37400-000   1640037400000

1640037400000
Not available
2
GEAR, DRIVEN (NT:23)

16331-37400-000   1633137400000

1633137400000
Not available
3
GR SHIFT CAM DR PIN<br />PIN
GR SHIFT CAM DR PIN
PIN

09261-04009-000   0926104009000

0926104009000

Unit Price

4
SHIM
WASHER

08221-10185-000   0822110185000

0822110185000

Unit Price

5
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

6
SCREW

02112-06258-000  

02112-0625A-000
 0211206258000

Unit Price

7
STRAINER, ENGINE OIL
STRAINER, ENGINE OIL

16520-37400-000   1652037400000

1652037400000

Unit Price

8
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

9
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

10
LOCK WASHER

08322-21058-000   0832221058000

0832221058000
Not available
11
DISCONTINUED

16523-37400-000   1652337400000

1652337400000
Not available
12
O RING OIL STR CAP
O RING

09280-82001-000   0928082001000

0928082001000

Unit Price

13
BOLT (6X20)

01517-06208-000   0151706208000

0151706208000
Not available
14
PLUG

09247-14001-000  

09247-14002-000
 0924714001000

Unit Price

15
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

16
FILTER ASSY, ENGINE OIL

16510-37440-000  

16510-37450-000
 1651037440000

Unit Price

17
O RING(D:2.4, ID:15.8)
O RING

09280-16005-000   0928016005000

0928016005000

Unit Price

18
CAP

16512-37400-000   1651237400000

1651237400000
Not available
19
O RING OIL FLT CAP
O RING

09280-72001-000   0928072001000

0928072001000
Not available
20
OIL STRAINER SPRING
SPRING

09440-21004-000   0944021004000

0944021004000

Unit Price

21
SCREW

02112-06205-000  

02112-0620A-000
 0211206205000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 500 DR 1983

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 DR 1983

Select your Suzuki 1983 model

500 DR 1983 DR500SD(E1)

Suzuki DR

Displacement: 500 cc
Year: 1983
Model code DR500SD(E1)
