INDICATORS (E18, E39)

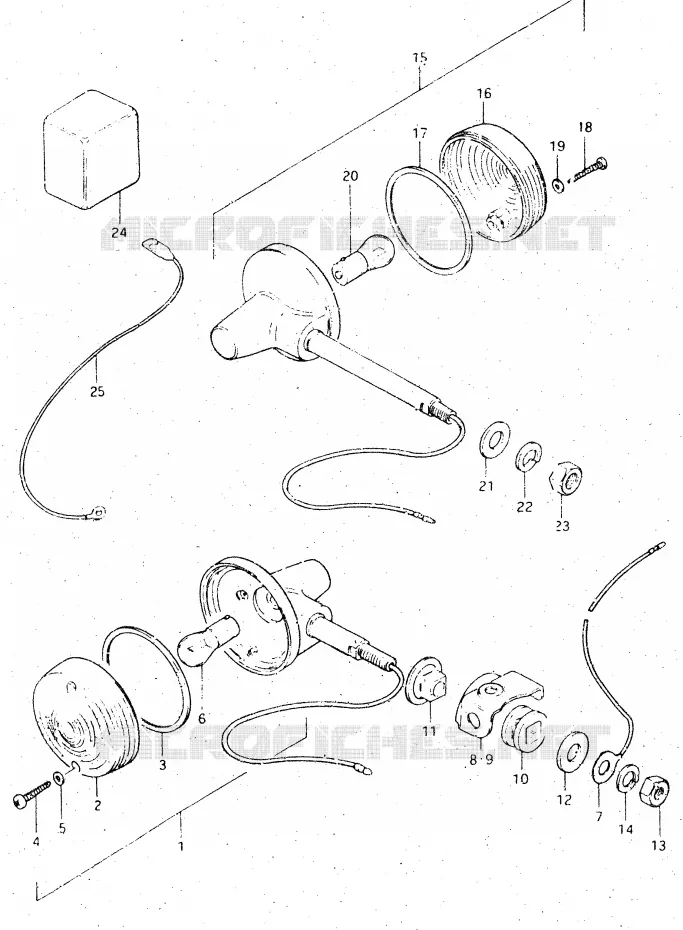

INDICATORS (E22) FOR SUZUKI DR 500 1983

TAIL LIGHT (E1,E4,E6,E21,E24,E25,E34) REFER TO FIG35 (F-4) FOR E2

LAMP, FRONT TURN SIGNAL

35601-48593-000 3560148593000

Not available

LENS

35612-47040-000 3561247040000

Not available

GASKET

35613-28620-000 3561328620000

$14,97

Unit Price

.TAPPING SCREW

03211-04208-000 0321104208000

Not available

GASKET

35627-43010-000 3562743010000

$3,97

Unit Price

BULB (6V, 21W)

09471-06033-000 0947106033000

Not available

LEAD WIRE, EARTH
LEAD WIRE, FRONT EARTH

36660-33000-000 3666033000000

$9,97

Unit Price

BRACKET, FRONT RH

51251-30902-08C 512513090208C

Not available

BRACKET, FRONT LH

51252-30902-08C 512523090208C

Not available

CUSHION

35690-32200-000

35690-32201-000

$59,97

Unit Price

SPACER

35695-36590-000 3569536590000

Not available

WASHER

09160-10006-000

09160-10501-000

$3,97

Unit Price

.NUT

08310-11108-000 0831011108000

Not available

.LOCK WASHER

08321-21108-000 0832121108000

Not available

LAMP, REAR TURN SIGNAL

35603-37292-000 3560337292000

Not available

LENS

35652-47040-000 3565247040000

Not available

GASKET

35613-28620-000 3561328620000

$14,97

Unit Price

.TAPPING SCREW

03211-04208-000 0321104208000

Not available

GASKET

35627-43010-000 3562743010000

$3,97

Unit Price

BULB (6V, 21W)

09471-06033-000 0947106033000

Not available

WASHER, LOWER LH

08322-11108-000 0832211108000

Not available

.LOCK WASHER

08321-21108-000 0832121108000

Not available

.NUT

08310-11108-000 0831011108000

Not available

RELAY ASSY, TURN SIGNAL

38610-48621-000 3861048621000

Not available

LEAD WIRE, RELAY EARTH

36851-45010-000 3685145010000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS (E22) of your Suzuki of DR. Let us know if you have any questions.
